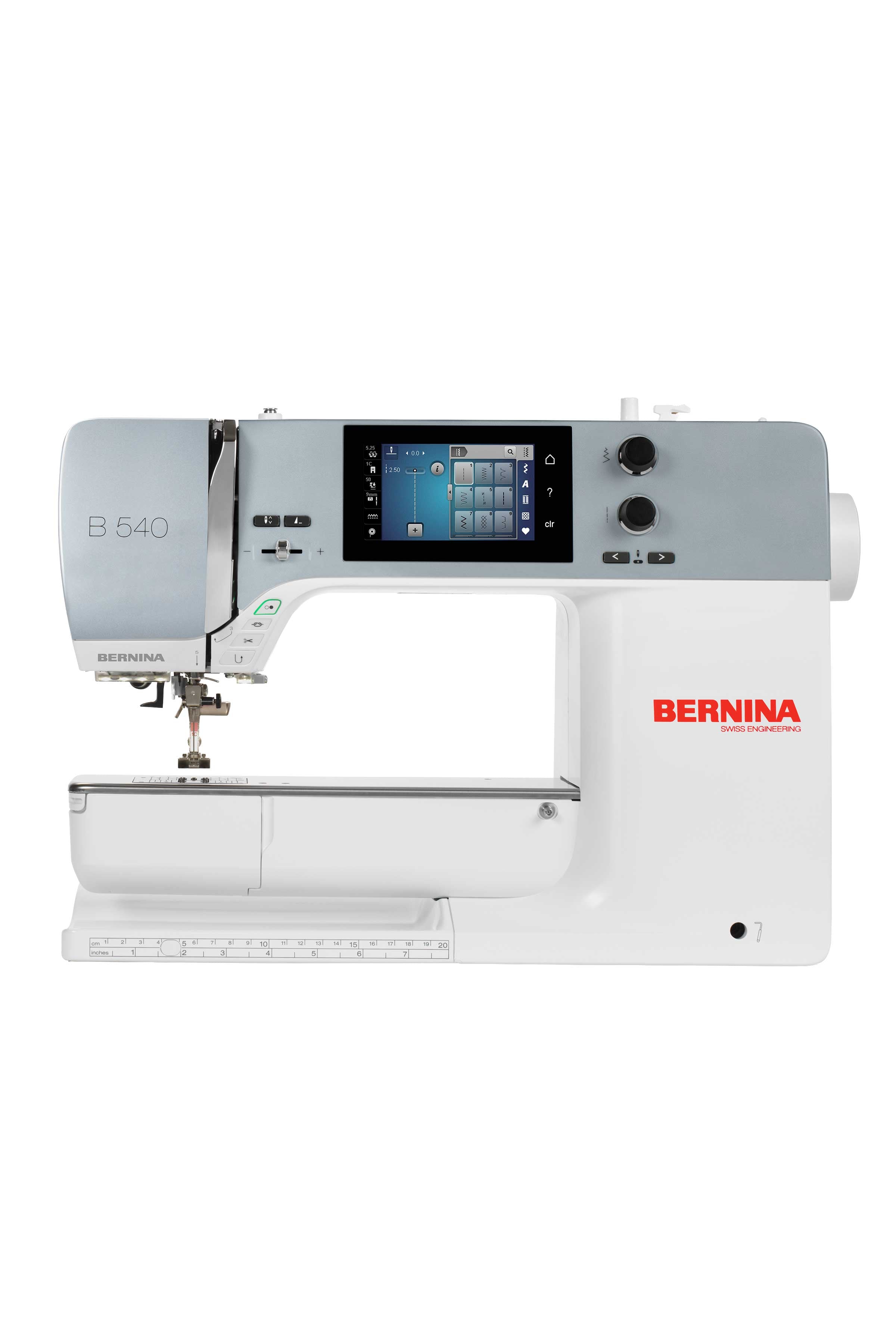

The BERNINA 540 combines precise sewing and quilting with the option of adding machine embroidery later. The BERNINA Hook with its large bobbin, the automatic thread cutter and the colour touchscreen support a comfortable workflow, even for demanding projects.
BERNINA 540 highlights
1,048 stitch patterns, including 30 practical stitches, 300 decorative stitches, 14 buttonholes and 5 sewing alphabets
up to 1,000 stitches per minute
maximum stitch width of 9 mm
21.5 cm of space to the right of the needle
automatic thread cutter and upper and lower thread monitoring
electronically adjustable thread tension
Free Hand System knee lifter for comfortable handling
suitable for sewing and quilting; BSR enabled
Optional embroidery

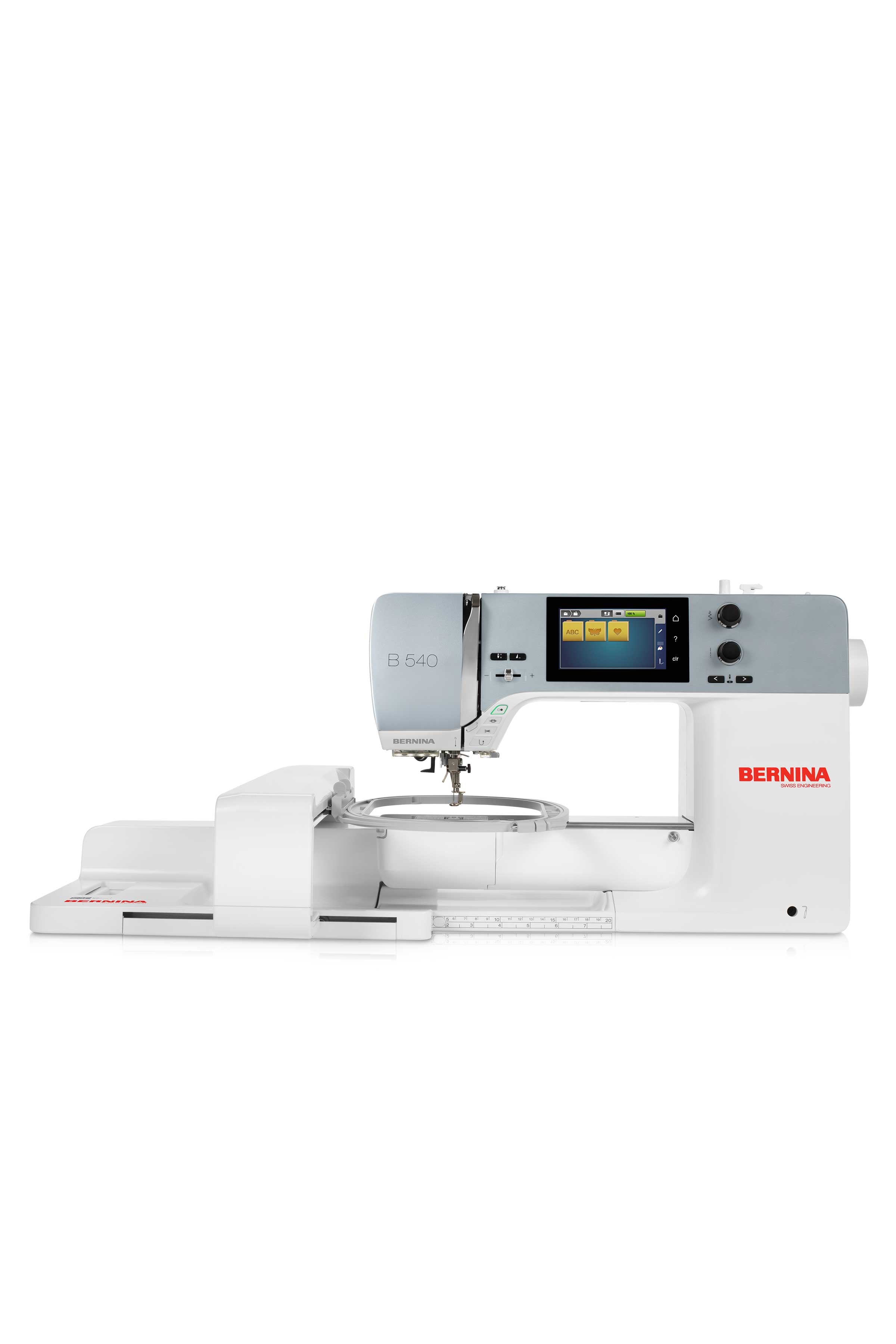

Add the separately available BERNINA Embroidery Module M with SDT to turn the BERNINA 540 into an embroidery machine. Designs can be positioned, rotated, mirrored, resized and combined on screen.
Need advice? We will be happy to help you choose the machine, embroidery module and accessories that suit your projects.
We'll add this machine to your account
After your purchase, the BERNINA B 540 will be listed in your account. From then on, you'll see for every accessory whether it fits.
Often bought together
In stock
Couldn't load pickup availability
Pickup available at Ladengeschäft Hamburg
\n Usually ready in 2-4 days\n\n
You may also be interested in
BERNINA B540
2.699,00 €
\n\n
Financing
You can conveniently finance your machine if you wish. When purchasing, select bank transfer as the payment method and, after your purchase, complete the form so that we can request financing for you from Creditplus Bank.
0% financing for selected machines
choose between 10 or 20 monthly instalments
a freely selectable deposit is possible
an optional final instalment is possible
debiting on either the 15th or 30th of the month
the bank usually responds very promptly
Important information
Financing only becomes binding after review and approval by Creditplus Bank. Creditplus terms and conditions apply.
Use our advice form and send us all relevant details about your requirements and budget. We’ll get back to you.
BERNINA hook system with jumbo bobbin
The BERNINA hook system ensures a clean, quiet stitch and offers an extra-large thread capacity with the Jumbo bobbin. This allows you to sew for longer, wind bobbins less often, and work smoothly even on larger projects.
Sewing at a new level – precise, powerful, uncompromisingly creative
The BERNINA 540 combines technical precision with a smooth, high-quality sewing experience. Every stitch is perfect, every setting can be finely adjusted – whether you're sewing clothes, working on quilting projects, or adding creative details. This machine gives you control, precision, and the option to enter the world of embroidery later with the matching embroidery module M (SDT).
Product details
overview

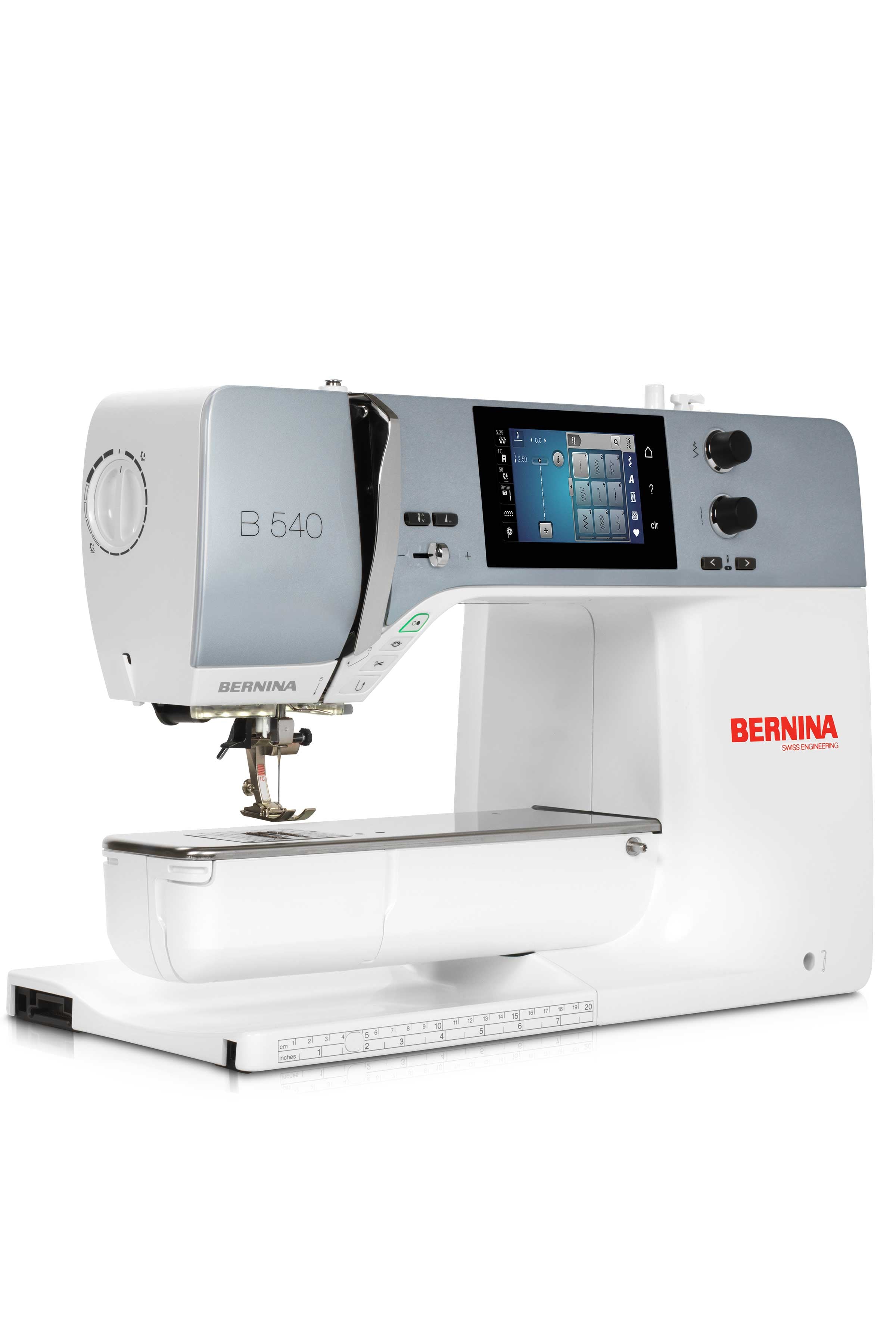

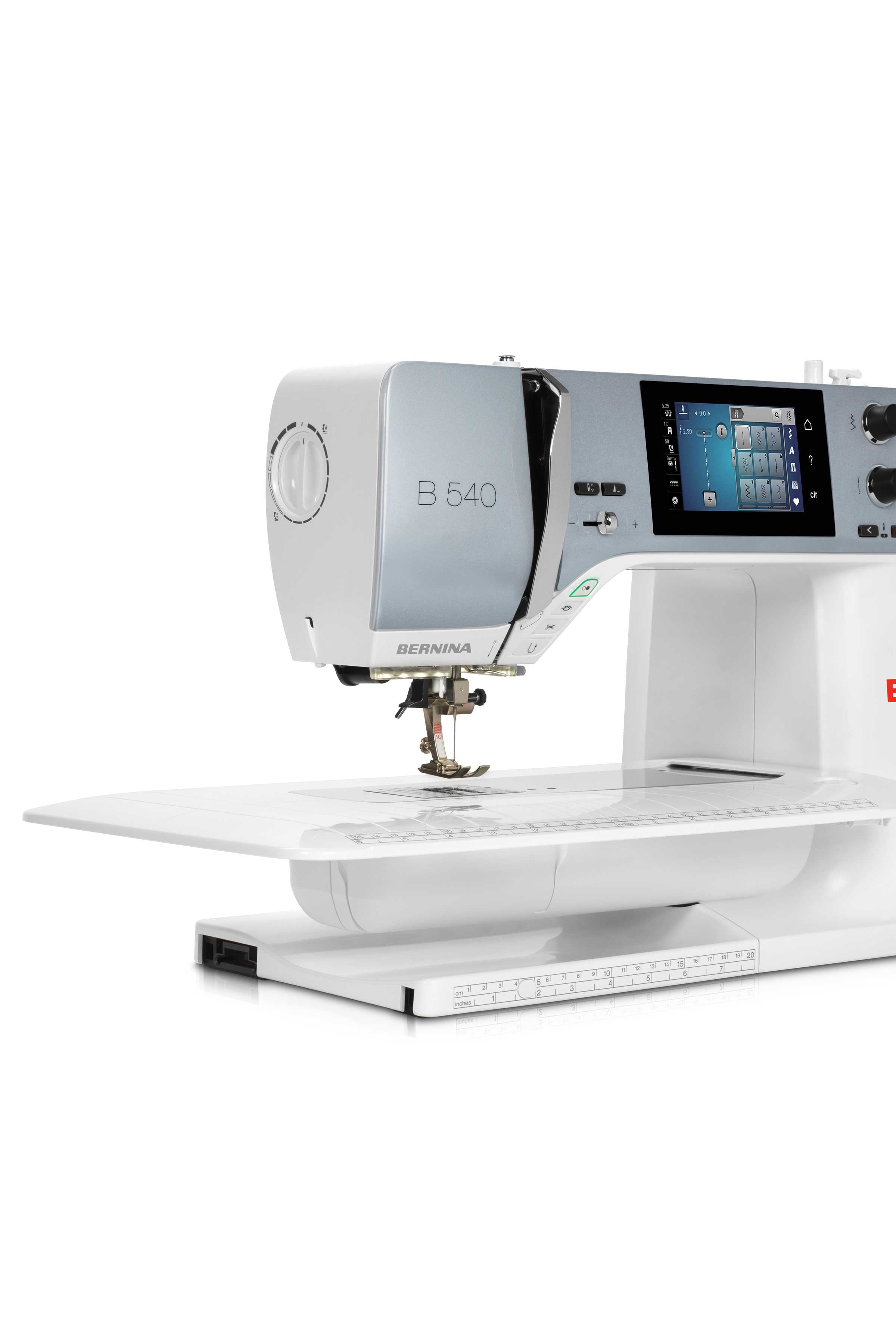

The BERNINA 540 is a high-quality, computer-controlled sewing machine from the BERNINA 5 Series. It is aimed at ambitious sewers who value precision, comfort, and a durable machine.
Equipped with the BERNINA Hook system, it offers very consistent stitch formation, quiet operation, and the practical Jumbo Bobbin with an exceptionally high thread capacity. This means fewer interruptions while sewing and a pleasantly smooth workflow.
Stitches and settings can be selected intuitively via the color touchscreen. Stitch width, stitch length, needle position, thread tension, and many other functions can be adjusted directly. The automatic thread cutter, knee lifter, and thread monitor significantly simplify daily tasks.
The BERNINA 540 is suitable for apparel, quilting, home textiles, and creative sewing projects. Additionally, it can be expanded into an embroidery machine with the appropriate embroidery module M (SDT).
Characteristics
The focus is on the exceptional stitch quality achieved by the precise hook system and finely tuned technology. Even at high speeds, the stitch pattern remains consistent and even. The integrated dual feed ensures that fabric layers are guided precisely without materials shifting against each other. The machine operates powerfully yet controllably, allowing both fine fabrics and thicker materials to be processed reliably. Operation is via a modern touchscreen, which provides quick access to all functions and facilitates individual adjustments. Overall, this creates a very direct, controlled sewing experience that is particularly impressive for detailed projects.
The BERNINA 540's expandability makes it particularly future-proof: with the optionally available embroidery module M (SDT), the machine can be upgraded to an embroidery machine. This means it remains not only a precise sewing and quilting machine but also grows with your creative demands.
Application
The BERNINA 540 is suitable for apparel, quilting, home textiles, creative sewing projects, and decorative work. It reliably handles fine, medium, and heavier fabrics and offers precise settings for excellent control over stitch pattern and seam guidance. Those who wish to embroider later can expand the machine with the appropriate embroidery module M (SDT).
Manufacturer information
Manufacturer: Bernina Nähmaschinen GmbH Address: Ludwig‑Winter‑Straße 3, D‑77767 Appenweier, Germany
Contact: Email: contact@bernina.com (according to EU warehouse information)
This is what awaits you
Accessories
Machine
Manual
Specifications for product BERNINA B540
General functions and features
Manufacturer
BERNINA
Controls
Shows how the machine is primarily controlled, for example using buttons, dials or a touchscreen.
Dimensions of the machine when ready for use, without packaging. For combination machines, dimensions may be stated without and with the embroidery unit.
Without embroidery module: W 46.5 × D 19.5 × H 33.0 cm
Machine weight
11.0 kg
Separate bobbin-winding motor
Allows a new bobbin to be wound while the machine is sewing or embroidering.
Yes
Updatable
According to the manufacturer, the machine’s firmware or software can be updated.
Yes
Sewing
Total sewing stitches
Total number of built-in sewing stitches. Buttonholes and alphabets may be included depending on how the manufacturer counts them.
1048
Utility stitches
Sewing stitches for basic tasks such as straight stitch, zigzag, overcasting or stretch seams.
30
Decorative stitches
Decorative sewing stitches for embellishing fabrics. Embroidery designs are not included.
300
Built-in sewing alphabets
Alphabets sewn using regular sewing stitches. They are not the same as embroidery alphabets.
5
Buttonhole types
Number of different buttonhole types that can be sewn using the sewing function.
14
Button sewing program
Special sewing program for attaching buttons by machine.
Yes
Maximum sewing speed
Highest sewing speed specified by the manufacturer, in stitches per minute.
1,000 stitches/min
Maximum stitch width
Greatest possible width of a zigzag or decorative stitch.
9 mm
Maximum stitch length
Greatest adjustable length of a straight stitch.
6 mm

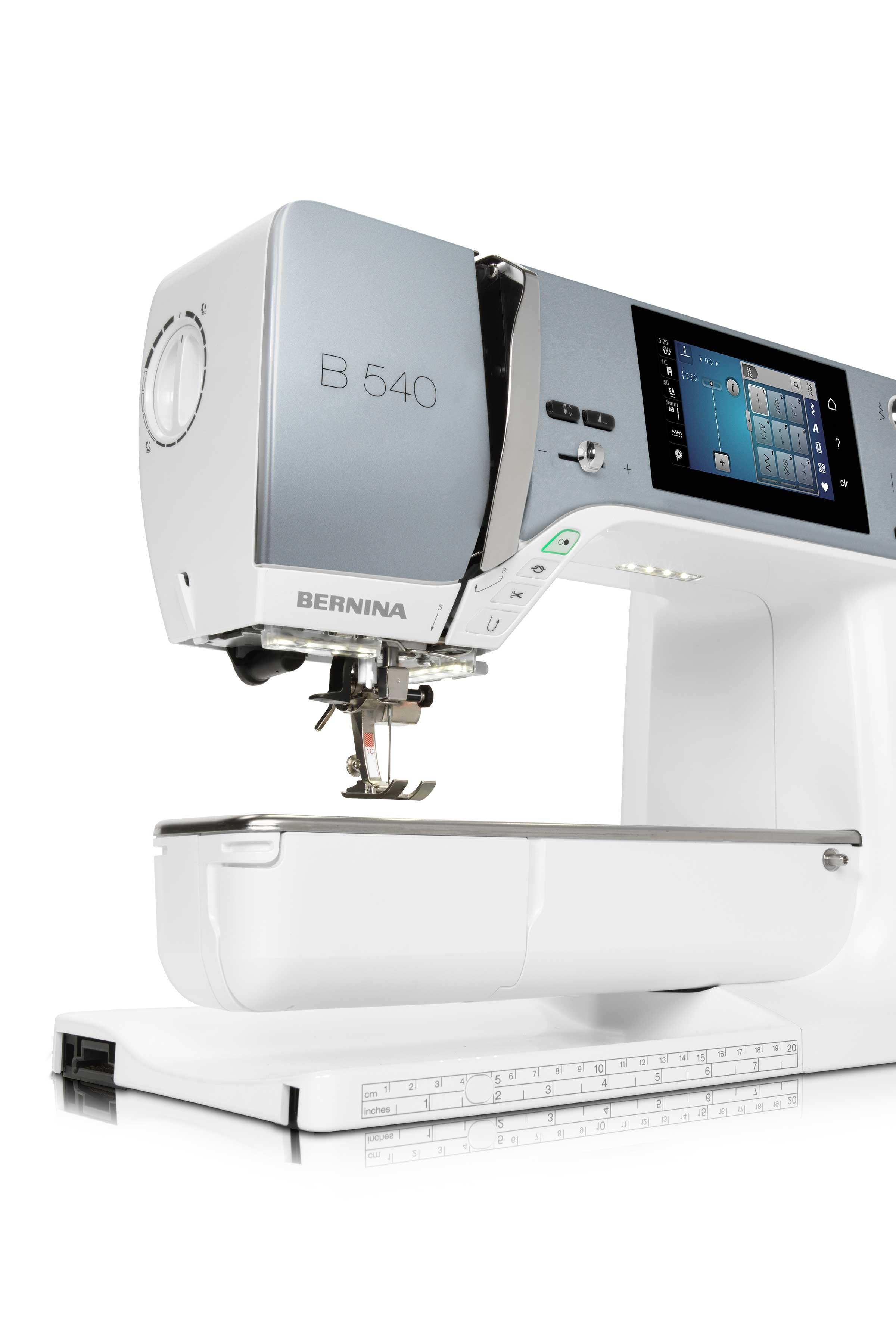

Presser foot pressure adjustment
Controls how firmly the presser foot presses on the fabric. Adjustment helps with very fine, thick or stretchy fabrics.
Mechanically adjustable
Needle stop up/down
Determines whether the needle stops in the raised position or in the fabric, for example when pivoting the project.
Button, foot control
Lateral needle positions
Number or range of selectable lateral needle positions for precise seam allowances.
11 needle positions
Twin-needle function
Allows parallel seams to be sewn with a twin needle, provided a suitable needle is fitted.
With security function
Automatic securing stitches
Automatically secures the beginning or end of a seam with locking or reverse stitches.
Programmable
Reverse sewing
Continuous and manual
Free arm for sewing
Makes it easier to sew closed or narrow items such as sleeves, trouser legs and cuffs.
Yes
Mirror stitches
Mirrors suitable sewing stitches horizontally or vertically, where the respective direction is supported.
Horizontally and vertically
Pattern start/end
Moves directly to the beginning or end within a stitch sequence.
Pattern start and end
Stitch memory
Saves selected or combined sewing stitches for later reuse.
