HAPPY HCH-701P 7-Needle Embroidery Machine
Start a Business
2 reviews

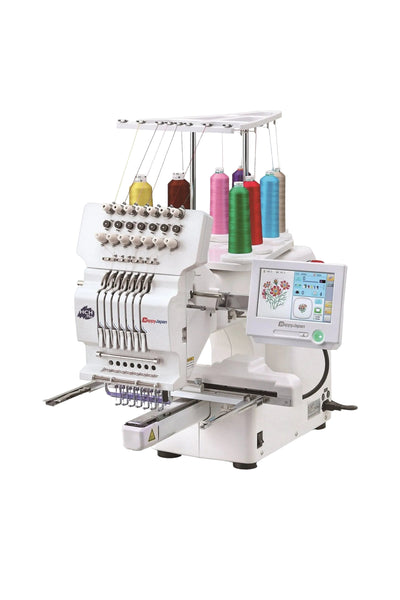

The HAPPY HCH-701P is a compact seven-needle embroidery machine with an unrestricted cylinder arm. Set up designs on the 7-inch touchscreen and transfer files by network or USB cable. The laser pointer supports placement on the hooped item.
Seven needles for automatic colour changes
Maximum embroidery field of 285 × 290 mm
Up to 1,000 stitches per minute
Up to 650 stitches per minute on caps
7-inch LCD touchscreen
Laser pointer for positioning
Network and USB cable connection to a computer
Unrestricted cylinder arm for closed items
Optional cap frame available
Wir tragen diese Maschine für dich ein
Nach dem Kauf steht die Happy Japan HCH-701P in deinem Konto. Ab dann siehst du bei jedem Zubehörteil, ob es dazu passt.
You can conveniently finance your machine if you wish. When purchasing, select bank transfer as the payment method and, after your purchase, complete the form so that we can request financing for you from Creditplus Bank.
0% financing for selected machines
choose between 10 or 20 monthly instalments
a freely selectable deposit is possible
an optional final instalment is possible
debiting on either the 15th or 30th of the month
the bank usually responds very promptly
Important information
Financing only becomes binding after review and approval by Creditplus Bank. Creditplus terms and conditions apply.
What matters most to you? Do you have a budget? Send us all the relevant information and we will get back to you.
7 needles. Full power in a compact format.
The Happy HCH-701P is the ideal embroidery machine for anyone looking to get started professionally: 7 needles, automatic color change, a compact free arm, and USB connectivity. Robust, space-saving, and portable—perfect for caps, clothing, and series.
This is how compact professional embroidery can be.
Embroider wherever you want – with the HappyJapan HCH-701P, you bring professional embroidery technology to your business. This compact 7-needle machine with free arm fits in small workshops, pop-up stores, or on your sewing table at home. It reads DST files directly from a USB stick, is easy to transport, and yet offers everything you need for professional embroidery. Ideal for starting out in business or as a second machine in a team.
Product details
overview
TheHCH-701Pfrom HappyJapan is a professional free-arm embroidery machine with 7 needles, specially designed for small production spaces, creative studios, or mobile embroideries. Its clever design allows for easy handling of difficult embroidery positions – such as caps, pockets, or sleeve areas. The 7-inch touchscreen simplifies operation, the robust housing ensures durability, and the front-facing USB port allows for direct DST file import. The machine works precisely and quickly, and with automatic thread cutting and color changing, offers everything you need for daily use – even without an industrial environment.
Characteristics
The HappyJapan HCH-701P features 7 individually controllable needles for color thread changes, a stable machine bed with a free-arm function, and a user-friendly touchscreen display. It reads DST files directly from a USB flash drive, has an automatic color change function, and an integrated thread cutter. Thanks to the open arm, it is ideal for hard-to-reach embroidery areas such as sleeves, pockets, or caps. The machine is characterized by high precision, low noise, and a robust construction – designed for continuous operation.
Application
The HCH-701P is particularly suitable for:
Small business owners with a focus on textile finishing
Start-ups in the field of corporate fashion, merchandise or handmade
Tailor-made workshops with individualized pieces
Creative people who want to professionally embroider caps, bags or sleeves
Thanks to its small footprint, it fits even in small work spaces – without compromising on performance.
Manufacturer information
🏭 HappyJapan Inc. Anschrift:
3515 Tachiyagawa 3‑chome,
Yamagata‑shi, Yamagata 990‑2251,
Japan
Telefon (für Stickmaschinen-Anfragen): +81‑3‑3834‑0718 (Mo–Fr, 9 – 17 Uhr JST)
This is what awaits you
Machine
Accessories
Manual
Specifications for product HAPPY HCH-701P 7-Needle Embroidery Machine
General functions and features
Manufacturer
HappyJapan
Controls
Shows how the machine is primarily controlled, for example using buttons, dials or a touchscreen.
Buttons, Touchscreen
Display type
Describes whether the machine has a monochrome or colour display.
Color display
Display size
Diagonal measurement of the machine’s built-in display in inches. Smartphone or tablet displays are not included.
7 inches
Touchscreen
Shows whether and how the machine display can be operated directly by touch.
Touchscreen
Sewing light
LED
Thread monitoring
Sensors indicate when the upper or bobbin thread breaks or is running low.
Upper-thread sensor

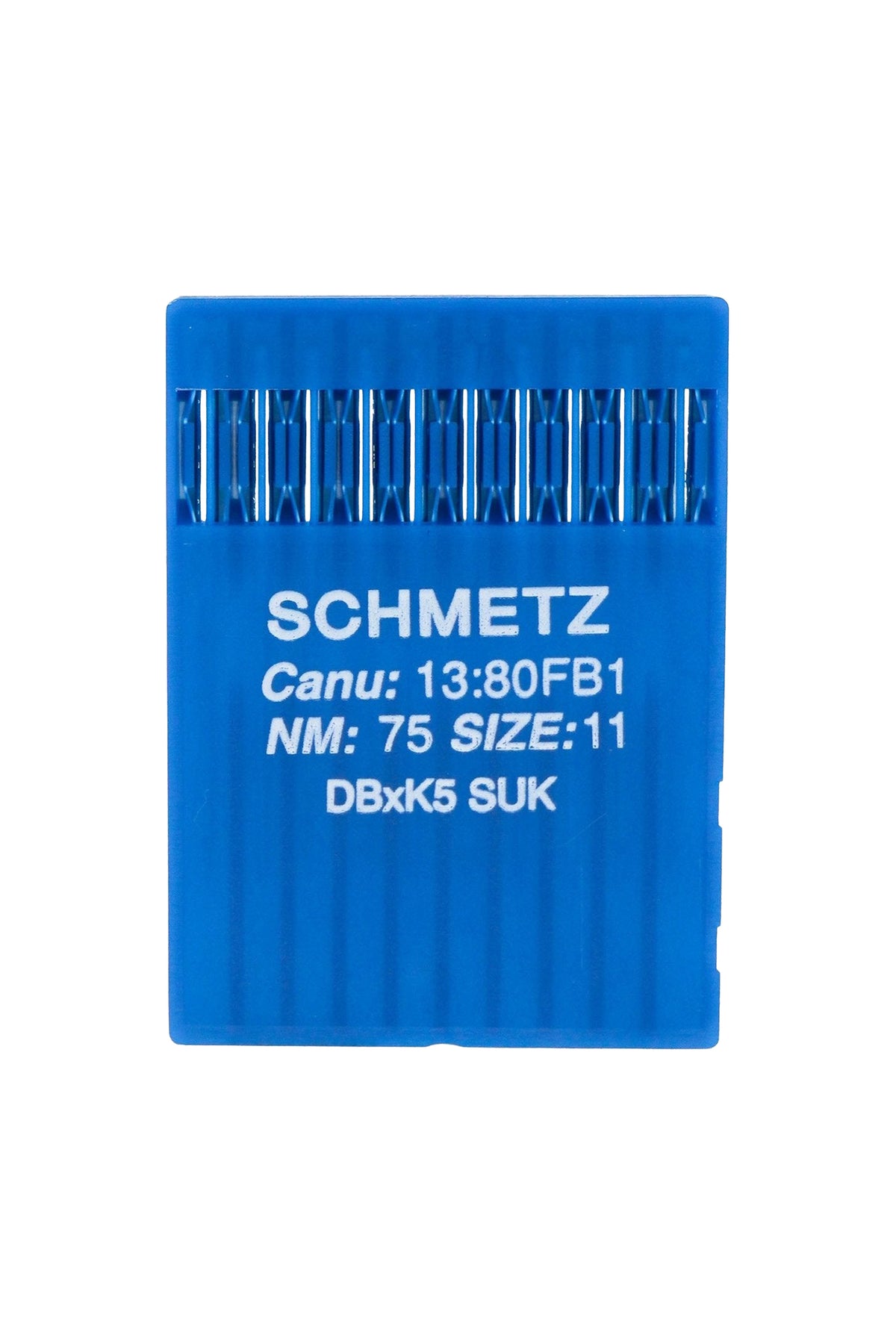

Needle system
Designation of the needle type or needle system suitable for the machine.
DBxK5
Number of needles
Number of needles that can be used at the same time. This may vary depending on the operating mode.
7
Upper thread tension
Describes whether and how the upper thread tension is adjusted or controlled automatically.
Mechanically adjustable
Automatic thread cutter
Cuts the upper and bobbin threads automatically or at the touch of a button after sewing or embroidery.
Electronic thread cutter
Speed control
Shows how the sewing or embroidery speed can be limited and controlled while working.
via screen - speed limitation for individual needles possible
Machine weight
42 kg
Usage counter
Displays stored usage data such as operating hours, stitch count or daily counter.
Daily counter, total counter
Separate bobbin-winding motor
Allows a new bobbin to be wound while the machine is sewing or embroidering.
Yes
Updatable
According to the manufacturer, the machine’s firmware or software can be updated.
Yes
Embroidery
Maximum included embroidery area
Largest embroidery area that can be used immediately with the hoops included in the package.
290 × 285 mm
Included embroidery hoops
Usable embroidery areas of the hoops included with the machine. The dimensions given are not the outer dimensions of the hoop.
290 × 285 mm and Ø 150 mm
Number of included embroidery hoops
2
Built-in embroidery alphabets
Alphabets produced as embroidery. They are not the same as sewn alphabet stitches.
12
Maximum embroidery speed
Highest embroidery speed specified by the manufacturer, in stitches per minute.
1,000 stitches/min
Drag-and-drop embroidery positioning
The embroidery design can be dragged directly to the desired position on the touchscreen using a finger.
Yes
Combine embroidery designs
Several embroidery designs can be combined into a single embroidery job.
Yes
Free-arm embroidery
Allows closed or narrow textiles to be embroidered without completely opening them up.
Yes
Embroidery file formats
File formats that the machine can read directly and use for embroidery.
.DST
Embroidery design transfer
Methods used to transfer embroidery files to the machine, for example a USB drive or Wi-Fi.
USB stick, LAN
Interface
Physical and wireless connections provided by the machine, for example USB or Wi-Fi.
USB port, LAN
Embroider without a computer
The machine can embroider built-in or imported designs without a permanently connected computer.
