Product information
overview

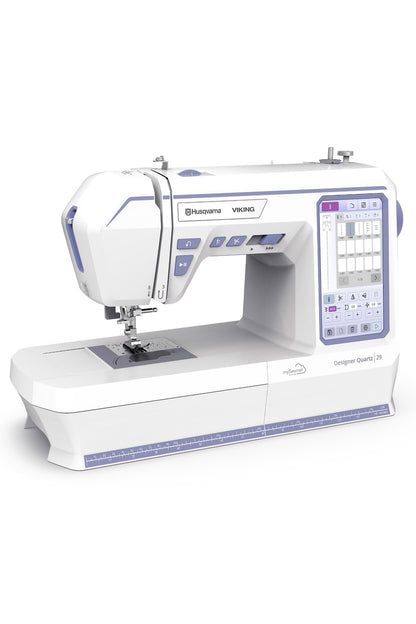

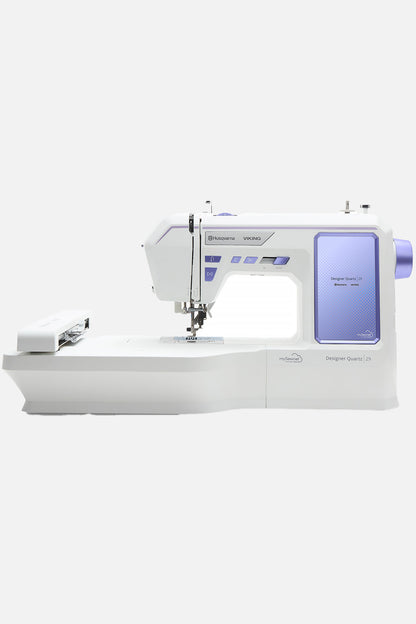

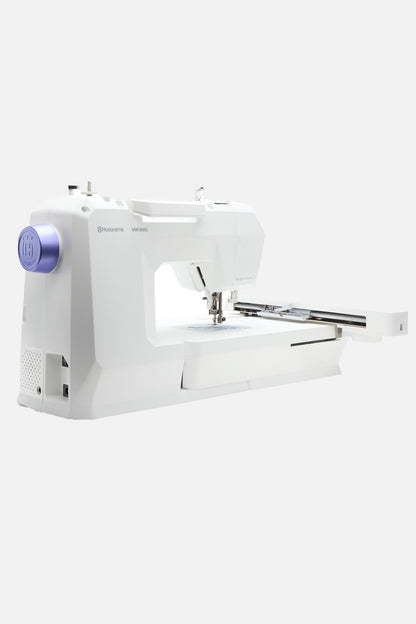

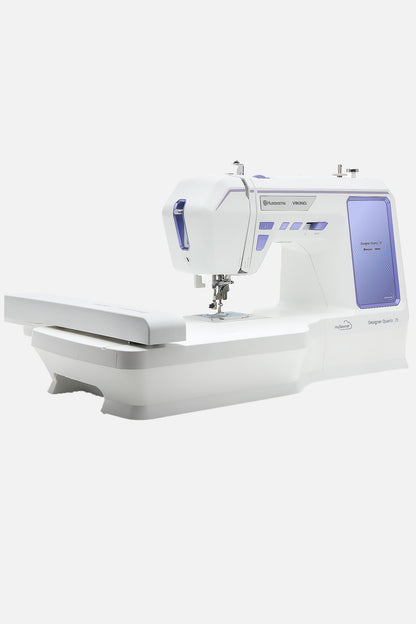

The Husqvarna VIKING Quartz 29 is a modern sewing and embroidery machine designed for both beginners and experienced users. It offers a variety of features that make working with different materials and designs efficient and user-friendly.
One of the machine's highlights is the large 7-inch color touchscreen , which allows for simple and intuitive operation. The integrated embroidery patterns and fonts can be flexibly adjusted via the screen—for example, by rotating, mirroring, or enlarging the designs. Furthermore, mySewnet™ connectivity enables the wireless transfer of embroidery files and updates, allowing seamless integration with various devices such as PCs, tablets, or smartphones. This gives users access to a wide selection of embroidery designs from the mySewnet™ library , significantly expanding their creative freedom.
The 170 x 100 mm embroidery area offers ample space for small to medium-sized projects. For even more precise work, optional embroidery hoops such as the 100 x 100 mm hoop or the 40 x 40 mm spring hoop can be used.
In addition, the Husqvarna VIKING Quartz 29 features practical features such as an integrated needle threader that simplifies the threading process, as well as a top and bobbin thread monitor that warns you when the thread is running low. With a sewing speed of 850 stitches per minute and an embroidery speed of 450 stitches per minute, the machine works precisely and quickly for optimal results.
TOP Features
Large 7" color touchscreen: User-friendly operation is intuitive via the touchscreen or stylus. Thanks to the generous screen size, you have clear and quick control of your machine, allowing you to concentrate fully on your project.
Personalized Designs: Bring your creative ideas to life by customizing designs. Change yarn colors with just a few taps, allowing you to create unique and personalized projects.
Convenient integrated needle threader: Threading the needle is child's play with a simple lever movement. You can concentrate fully on sewing without wasting time threading.
Practical upper and lower thread monitor: This clever monitor notifies you in good time when the upper or lower thread is running low to ensure trouble-free sewing and embroidery processes.
Speed controls for sewing and embroidery speed: The machine adapts to your individual work pace. With a maximum sewing speed of 850 stitches per minute and an embroidery speed of 450 stitches per minute, you'll achieve precise and fast results.
Outstanding performance in this price range: The Husqvarna VIKING Quartz 29 offers impressive performance and precision that's hard to beat in this price category. Your projects will be completed reliably and accurately.
Innovative Wi-Fi transfer of embroidery files: Thanks to mySewnet™ connectivity, you can transfer designs and updates wirelessly via Wi-Fi. Alternatively, a USB port is available for traditional transfer of designs. This machine is perfectly equipped for all your creative projects.
WiFi and Cloud
Easily connect your Husqvarna VIKING Quartz 29 sewing and embroidery machine to the mySewnet™ digital platform and discover a world of creative possibilities.
This connection gives you access to a wide selection of embroidery designs and the intuitive mySewnet™ embroidery software* . You can integrate your smartphone, tablet, and computer into your sewing and embroidery projects, taking your creations to a whole new level.
The mySewnet™ Vault allows you to save projects, stitches, and designs online, instead of on your machine's hard drive. These files can be easily accessed on various devices, including PCs, Mac®, smartphones, and tablets. You even get 2 GB of cloud storage for free!
With the mySewnet™ app's diverse features, you can unlock the full potential of your machine. For example, you can monitor the machine's stitching progress in real time. The Photostitch app , which is part of the mySewnet™ app, also lets you convert photos into monochrome embroidery files – easily from your smartphone, tablet, or computer.
Download the mySewnet™ app for free from Google Play or the App Store and log in with your mySewnet™ account to get started.
With a mySewnet™ subscription or a 90-day trial, you get access to the mySewnet™ SILVER and PLATINUM embroidery software services. These offer you numerous creative tools to create unique embroidery projects. You can combine designs, add fonts, and personalize your projects even further. The 90-day mySewnet™ Platinum trial subscription is included and ideal for testing.
Discover the mySewnet™ Library , an embroidery design streaming service that offers a digital library of high-quality embroidery designs. With mySewnet™-enabled embroidery machines, you can stream the designs directly via an embroidery software subscription. Alternatively, you can purchase designs through the Library's webshop feature and upload them as .vp3 embroidery files to your Husqvarna VIKING Quartz 29 via a USB drive.
Use mySewnet™ and
*You receive full access to mySewnet™ Platinum for 90 days. Afterward, you can switch back to the basic version or purchase the software at a discounted price here .
Sewing function
250 built-in stitches and 4 sewing fonts: There are no limits to your creativity. With the 250 built-in stitches and 4 sewing fonts, you can customize fabrics and add decorative accents – from simple to extravagant, you have a wide selection.
Perfect buttonholes: The Husqvarna VIKING Quartz 29 makes it easy to sew precise buttonholes. Simply place the button on the buttonhole foot, select the desired buttonhole size, and the machine does the rest. The length and quality of the buttonholes remain consistent, no matter how many you sew.
Free-motion sewing for creative effects: Lower the feed dogs, attach the included embroidery foot, and guide the fabric freely to create unique textures and creative quilting effects.
29 needle positions for precise sewing: The 29 needle positions allow you maximum control when topstitching, sewing in zippers, or piping. The machine offers a stitch width of up to 7 mm and a stitch length of up to 5 mm.
Individual speed control: Each stitch has a preset, recommended speed, which you can adjust to your preferences. You have complete control over whether you sew fast or slow.
Precise needle stop up/down: The needle stop button lets you determine whether the needle stays up or down when stopping. This is especially useful when sewing corners or appliqués to keep the fabric in place.
Wide range of accessories: A wide range of presser feet and accessories are available to further refine your sewing and embroidery projects.
Neat storage: The machine has a practical accessory compartment in which you can store presser feet and other accessories neatly and clearly, so that your workspace always remains tidy.
Automatic thread cutting at the touch of a button: With a simple press of a button, the machine automatically cuts the upper and lower threads, making your work more efficient and convenient.
Embroidery function
Embroidery area 170 mm x 100 mm : The Husqvarna VIKING Quartz 29 's generous embroidery area ensures maximum comfort while embroidering and is ideal for both small and large designs. The included embroidery frame guarantees high embroidery performance, so you can start your projects right away.
Get creative with the digital color chart : Design your embroidery designs to your liking with a wide range of colors. During the embroidery process, the color touchscreen displays the design stitch by stitch in a realistic representation, so you stay in control of your project at all times.
Comprehensive editing package : With the visual aids on the color touchscreen, you can customize embroidery motifs and stitches. You can rotate, mirror, resize, and freely position designs on the embroidery hoop—there are no limits to your creativity.
Perfect design placement : The integrated placement guides ensure that your designs are embroidered exactly where you want them. Corner symbols and the corner point checker help you precisely check the positioning on the fabric.
Versatile with over 180 embroidery designs and 10 embroidery fonts : With more than 180 built-in embroidery designs and 10 embroidery fonts, you have numerous options for creating personalized and unique fabric projects.
Versatile embroidery file format .vp3 : The Husqvarna VIKING Quartz 29 uses the versatile embroidery file format .vp3 , which opens up countless possibilities for your embroidery projects.

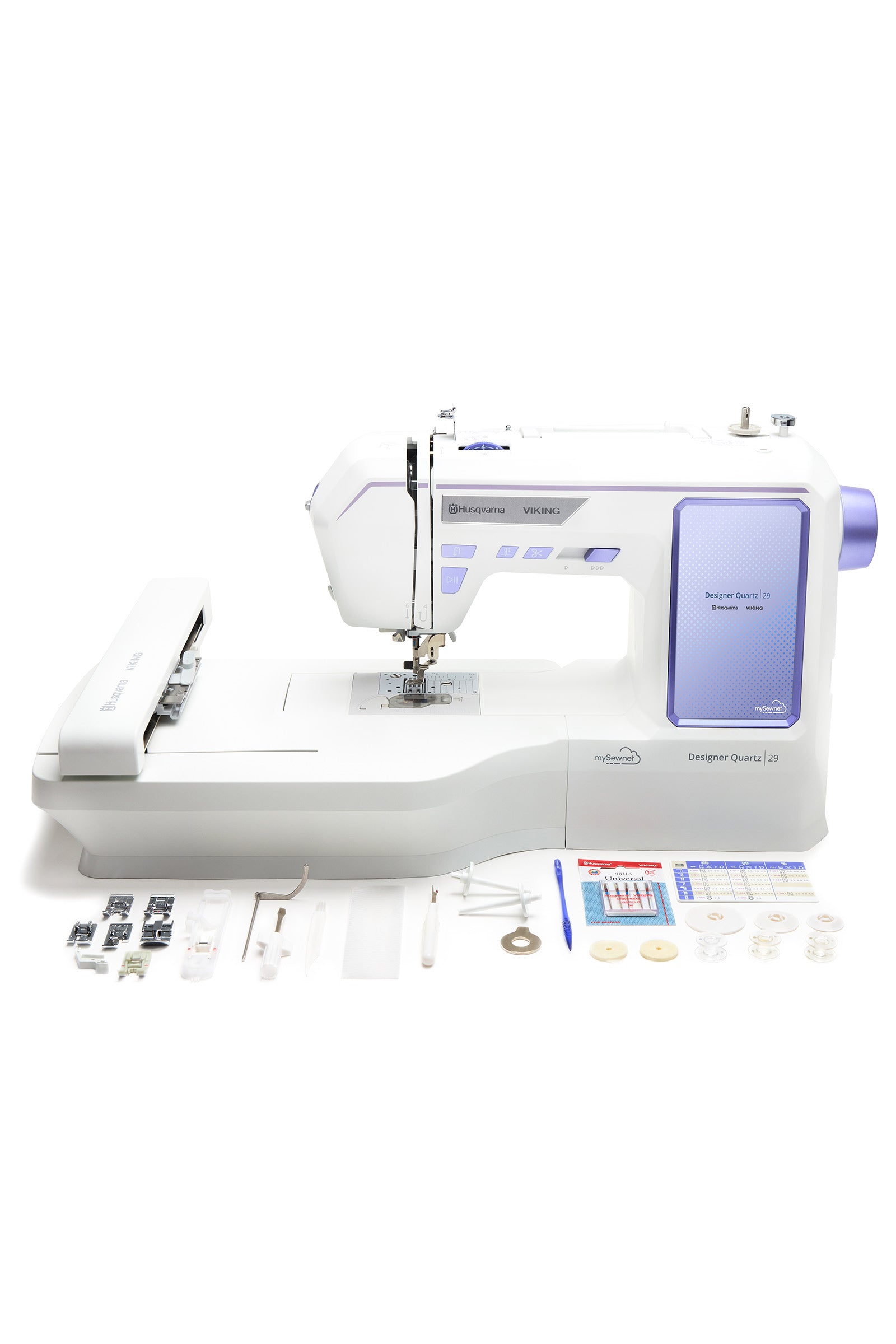

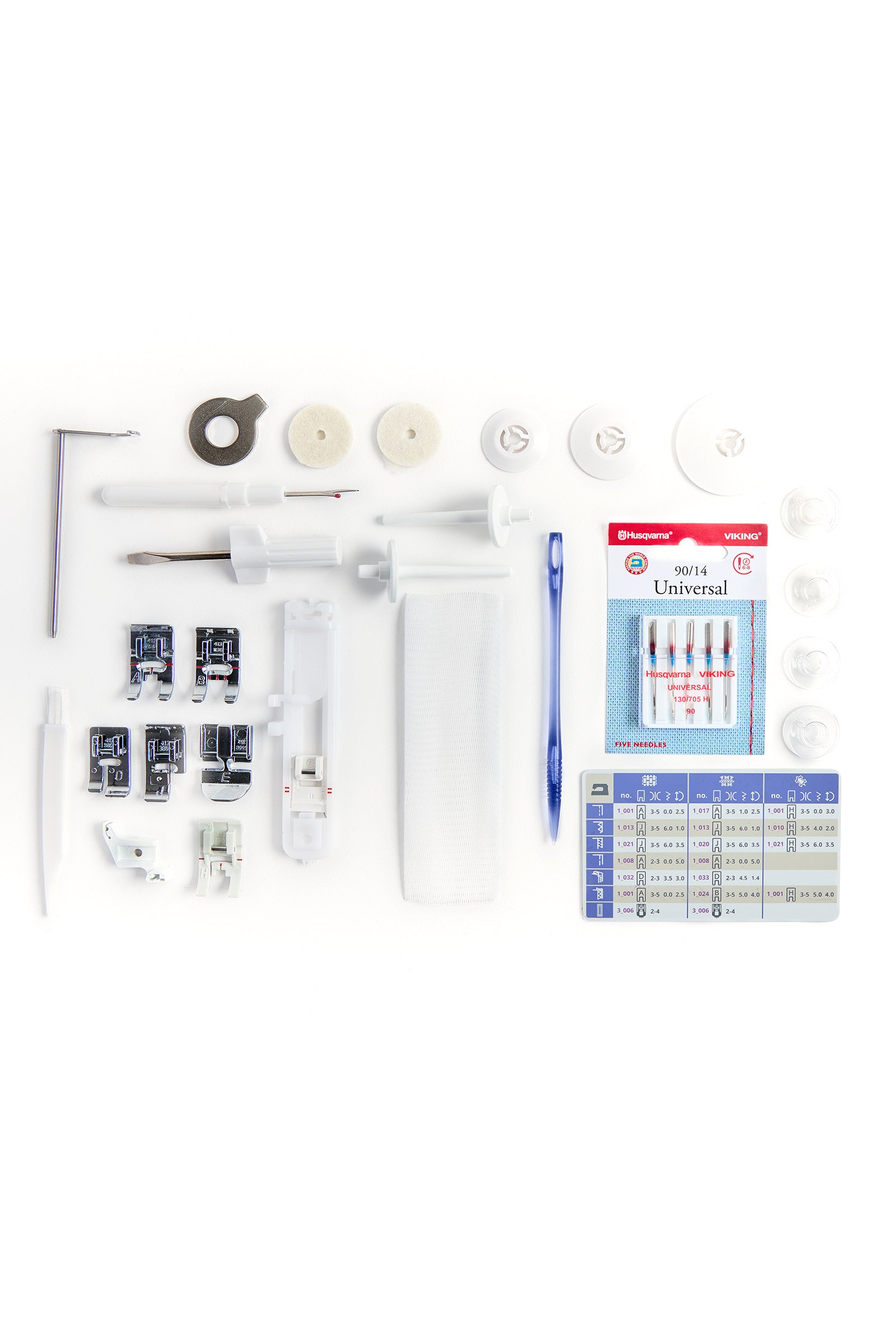

Accesories
Thread spool net
Management assistance
screwdriver
Felt disc
Edge/quilting guide
vertical spool pin
Seam ripper
Brush (for cleaning the feed dog)
Coils (2)
Screwdriver for needle plate
Thread spool guide disc, small
Thread spool guide disc, medium
Thread spool guide disc, large
Foot control
Power cable
needles
1 embroidery frame
Embroidery frame (170 x 100 cm)
5 presser feet
Buttonhole foot with slide
Zipper foot
Application foot
Straight stitch / patchwork foot
Embroidery foot
Embroidery software
90-day trial subscription for mySewnet Platinum
Technical data
Stitches
250
Max. stitch width
7 mm
Max. stitch length
5 mm
Fonts
4
Space for sewing (between tower and needle)
160 mm
Screen size
7" diagonal
needle threader
integrated (semi-automatic)
max. needle position up/down
Yes
Thread cutter
automatic thread cutter
Cruise control
Slider on the front of the machine
Max. sewing speed
850 stitches/minute
IDT SYSTEM
no
Maximum embroidery area
170 x 100 mm
Start/Stop button
Yes
Conveyor sinking
automatically
Thread tension
automatically
Create stitch sequences
no
Integrated embroidery designs
over 150
Embroidery fonts
10
Automatic cutting of jump stitches when embroidering
n/a
If you have any questions, please feel free to contact us at any time. We will respond as quickly as possible – usually within 24 hours on business days.
Shipping information
Shipping is via DHL and is free within Germany for orders over €75 . 97% of all orders are delivered within 16 to 48 hours on working days.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Husqvarna VIKING Designer Quartz 29
Intuitiv. Vernetzt. Kreativ.
Erlebe mit der Husqvarna VIKING Quartz 29 die Verbindung aus intuitiver Bedienung, smartem Design und innovativer Sticktechnik. Mit großem Farb-Touchscreen, WLAN, 250 Stichen und 180 Stickdesigns. Ideal für kreative Projekte.
Aus Ideen wird Stoff. Und aus Stoff wird Persönlichkeit.
Mit der Designer Quartz 29 Nähmaschine bringst Du Deine Kreativität auf ein neues Level. Ob Nähen oder Sticken – die Maschine vereint modernes Design mit intelligenter Technik.
Der große 7″ Farbtouchscreen reagiert auf Deine Berührung, zeigt Dir Deine Motive in klaren Farben und erleichtert jede Anpassung. Über Wi-Fi und mySewnet Cloud überträgst Du eigene Designs drahtlos auf die Maschine.
Du hast die Wahl zwischen 250 integrierten Stichen und 180 Stickmotiven – darunter 10 Schriftarten für personalisierte Projekte. Zwei mitgelieferte Stickrahmen (170x100 mm und 100x100 mm) ermöglichen Dir kreative Flexibilität. Automatischer Nadeleinfädler, Start/Stopp-Taste, LED-Beleuchtung und Fadensensor sorgen für entspanntes Arbeiten – ganz gleich, ob Du ein Einsteiger oder Fortgeschrittener bist.
Mit bis zu 850 Stichen pro Minute beim Nähen und 450 im Stickmodus setzt Du Projekte zügig um. Und mit dem im Lieferumfang enthaltenen Videokurs lernst Du die Designer Quartz 29 von Grund auf kennen – praxisnah, verständlich und in Deinem Tempo.
Die Kombination aus intuitivem Touchscreen, sauberem Stichbild und der Möglichkeit, Stickmotive direkt über die Cloud zu übertragen, macht sie für mich zu einer der spannendsten Maschinen im mittleren Preissegment. Besonders für unsere Community ist sie ideal: nicht zu komplex, aber technisch schon richtig stark. Und mit dem beiliegenden Videokurs holst du direkt alles raus, was die Maschine kann.
— MarkExperte für Stickmaschinen
Product information
overview
Die PFAFF Creative Expect 350 ist eine fortschrittliche Näh- und Stickmaschine, die sowohl für Einsteiger als auch für erfahrene Anwender konzipiert ist. Sie bietet ein breites Spektrum an Funktionen, die das Arbeiten mit verschiedenen Materialien und Designs komfortabel gestalten.
Zu den Highlights dieser Maschine gehört der 7-Zoll-Farb-Touchscreen, der eine einfache und intuitive Bedienung ermöglicht. Hierüber können die 180 integrierten Stickmuster und 10 Stickschriften individuell angepasst werden, wie z.B. das Drehen, Spiegeln oder Vergrößern der Designs. Die mySewnet™-Konnektivität ermöglicht es, Stickdateien und Updates kabellos zu übertragen, wodurch eine nahtlose Verbindung zu verschiedenen Geräten wie PC, Tablet oder Smartphone gewährleistet ist. Diese Funktion erweitert den kreativen Spielraum enorm, da Benutzer auf eine riesige Auswahl an Stickdesigns aus der mySewnet-Bibliothek zugreifen können.
Die Maschine bietet eine Stickfläche von 170 x 100 mm, die ausreichend Platz für kleine bis mittelgroße Projekte bietet. Für präzisere Stickarbeiten sind zusätzliche Stickrahmenoptionen verfügbar, wie der 100 x 100 mm Rahmen oder der 40 x 40 mm Spring Hoop.
Darüber hinaus verfügt die PFAFF Creative Expect 350 über praktische Funktionen wie den integrierten Nadeleinfädler, der den Einfädelvorgang erleichtert, sowie Ober- und Unterfadenwächter, die rechtzeitig warnen, wenn der Faden zur Neige geht. Mit einer Nähgeschwindigkeit von 850 Stichen pro Minute und einer Stickgeschwindigkeit von 450 Stichen pro Minute arbeitet die Maschine zügig und präzise.
Characteristics
Display
Color display
Scope of delivery
Zubehörteile:
Garnrollennetz
Führungshilfe
Schraubendreher
Filzscheibe
Kanten-/Quiltführung
Senkrechter Garnrollenstift
Nahttrenner
Bürste (zum Reinigen des Transporteurs)
Spulen (2 Stück)
Schraubendreher für Stichplatte
Garnrollenführungsscheibe, klein
Garnrollenführungsscheibe, mittel
Garnrollenführungsscheibe, groß
Fußanlasser
Netzkabel
Nadeln
Stickzubehör:
1 Stickrahmen
Stickrahmen (170 x 100 mm)
Stickfuß
Sticksoftware: 90 Tage Probe-Abo für mySewnet Platinum
Nähfüße (insgesamt 5):
Knopflochschlittenfuß
Reißverschlussfuß
Applikationsfuß
Geradstich- / Patchworkfuß
Stickfuß (bereits oben gelistet, ggf. doppelt)
Application
Touch & Go.
Der großzügige 7-Zoll-Farb-Touchscreen macht die Bedienung der Quartz 29 so intuitiv wie dein Smartphone. Ob Navigation durch Menüs, Stickvorschau oder Farbanpassung – alles funktioniert flüssig und direkt per Fingertipp oder Stylus.
Gestalte, was du dir vorstellst.
Mit nur wenigen Berührungen passt du Garnfarben an, bearbeitest Motive oder platzierst Designs präzise im Stickrahmen. So entstehen individuelle Projekte, die so einzigartig sind wie du.
Einfädeln? Sekundensache.
Der integrierte Nadeleinfädler sorgt mit einem einfachen Hebelzug für stressfreies Einfädeln – damit du dich ganz aufs Nähen und Sticken konzentrieren kannst.
Volle Kontrolle über deine Fäden.
Ein cleveres Fadensensor-System informiert dich, wenn Ober- oder Unterfaden zur Neige gehen. So arbeitest du unterbrechungsfrei und konzentriert.
Passt sich deinem Tempo an.
Ob du lieber schnell arbeitest oder lieber in Ruhe Details ausarbeitest – mit bis zu 850 Stichen pro Minute beim Nähen und 450 beim Sticken passt sich die Quartz 29 deinem Rhythmus an.
Immer verbunden.
Per WLAN überträgst du Designs direkt auf die Maschine – ganz ohne Kabel. In Kombination mit der mySewnet™ Plattform sicherst du deine Projekte in der Cloud, synchronisierst sie mit PC, Tablet oder Smartphone und nutzt Apps wie Photostitch oder Design Placement.
Stickdesigns überall verfügbar.
Nutze die integrierte Bibliothek mit über 180 Designs, 10 Stickschriften und dem freien Zugang zur mySewnet™ Library. Mit dem enthaltenen 90-Tage-Abo für mySewnet™ Platinum kannst du direkt loslegen – inklusive Premium-Funktionen und Cloudspeicher.
Nähen mit Präzision.
Die Quartz 29 bietet dir 250 Stiche, 4 Nähschriften und bis zu 29 Nadelpositionen. Ideal für Reißverschlüsse, Applikationen oder präzises Absteppen – alles individuell anpassbar.
Stickfläche mit Spielraum.
Mit dem 170 x 100 mm Stickrahmen gelingen kleine wie mittelgroße Motive mühelos. Optional erhältliche Rahmen erweitern deine Möglichkeiten.
Für dich gemacht.
Ob Einsteigerin oder Fortgeschrittener – die Quartz 29 ist intuitiv, präzise und bereit für kreative Ideen.
Manufacturer information
Hersteller / EU-Verantwortliche Person: VSM Deutschland GmbH
Adresse: An der RaumFabrik 34, 76227 Karlsruhe Kontakt: E‑Mail: info@vsmdeutschland.com
This is what awaits you
Videokurs
Zubehör
Maschine
Handbuch
Husqvarna VIKING Designer Quartz 29
Questions about the product
Ist die Designer Quartz 29 auch für Anfänger geeignet?
Ja, die Designer Quartz 29 ist dank einer Intuitiven Bedienung, großem Touchscreen und unserem exklusiven Videokurs ideal, schnell in das Maschinensticken reinzukommen reinzukommen.
Kann ich eigene Stickmotive verwenden?
Klar! Über Wi-Fi und die Creativate Cloud (ehem. mySewnet) importierst Du eigene Designs mit deinem Smartphone oder Tablet ganz ohne USB-Stick. Egal ob du Stickdateien aus unserem Shop, Etsy oder anderen Anbietern verwendest. Natürlich kannst du auch einen USB Stick verwenden.
Um eigene Stickdateien zu erstellen benötigst du eine separate Sticksoftware. Eine beliebte Lösung heißt Creativate (gibts auch bei uns im Shop) für den Mac und Windows PC. Damit kannst du Dateien auch direkt vom Bildschirm auf die Designer Quartz 29 übertragen.
Wie unterscheidet sich die Designer Quartz 29 von anderen Maschinen?
Sie bietet Dir eine Kombination aus Nähen und Sticken – mit großem Display, Cloud-Funktion und einem ausgewogenen Preis-Leistungs-Verhältnis.
Wenn du dir unsicher bist, ob die Quartz 29 für dein Projekt die richtige Maschine ist, kontaktiere uns vorab gerne.
