7" color touchscreen (153 × 85 mm) with direct on-screen editing
JoyOS ADVISOR with guided fabric/technique selection, automatic settings and tutorials/instructions in the machine
EXCLUSIVE SENSOR SYSTEM with automatic, continuous adjustment of fabric feed and presser foot pressure
Generous work area: 25 cm space to the right of the needle
Two embroidery hoops included: 360 × 200 mm and 120 × 120 mm (incl. embroidery module)
LED illumination with adjustable brightness
2 years statutory warranty (DE); additional service/warranty packages may be available depending on the offer
If your order contains this item, all items will be shipped together as soon as the complete order is available.
We'll add this machine to your account
After your purchase, the Husqvarna VIKING Designer Topaz 65 will be listed in your account. From then on, you'll see for every accessory whether it fits.
You can conveniently finance your machine if you wish. When purchasing, select bank transfer as the payment method and, after your purchase, complete the form so that we can request financing for you from Creditplus Bank.
0% financing for selected machines
choose between 10 or 20 monthly instalments
a freely selectable deposit is possible
an optional final instalment is possible
debiting on either the 15th or 30th of the month
the bank usually responds very promptly
Important information
Financing only becomes binding after review and approval by Creditplus Bank. Creditplus terms and conditions apply.
Use our advice form and send us all relevant details about your requirements and budget. We’ll get back to you.
Precision that makes you faster.
JoyOS ADVISOR combines guided settings with sensor technology, while you directly edit designs and stitches on the 7" touchscreen – for reproducible results in sewing and embroidery.
Sewing. Embroidery. Networking. The freedom to think creatively.
The DESIGNER Topaz™ 65 combines Scandinavian design with intelligent technology. It sews powerfully through multiple layers, positions embroidery patterns with millimeter precision, and guides you through every project with the JoyOS ADVISOR™.
With CREATIVATE™ Connectivity, a digital world of embroidery software, designs, and inspiration opens up to you – directly via the integrated Wi-Fi. Big ideas don't need compromises. Just precision.
Product details
overview

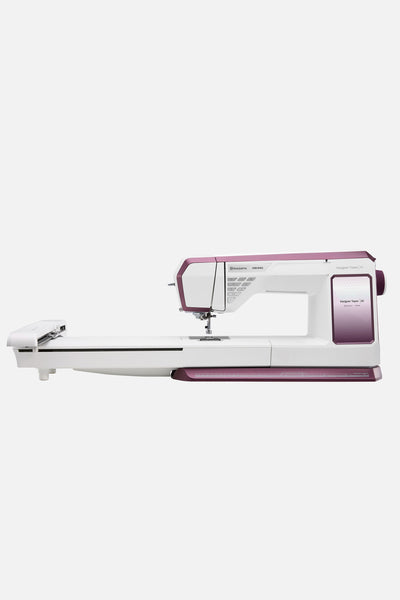

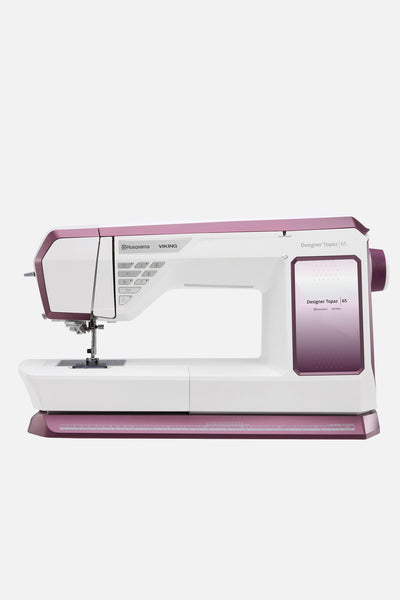

The HUSQVARNA® VIKING® DESIGNER Topaz™ 65 is a combined sewing and embroidery machine with integrated Wi-Fi, a large 7" touchscreen and extensive convenience features for ambitious creatives.

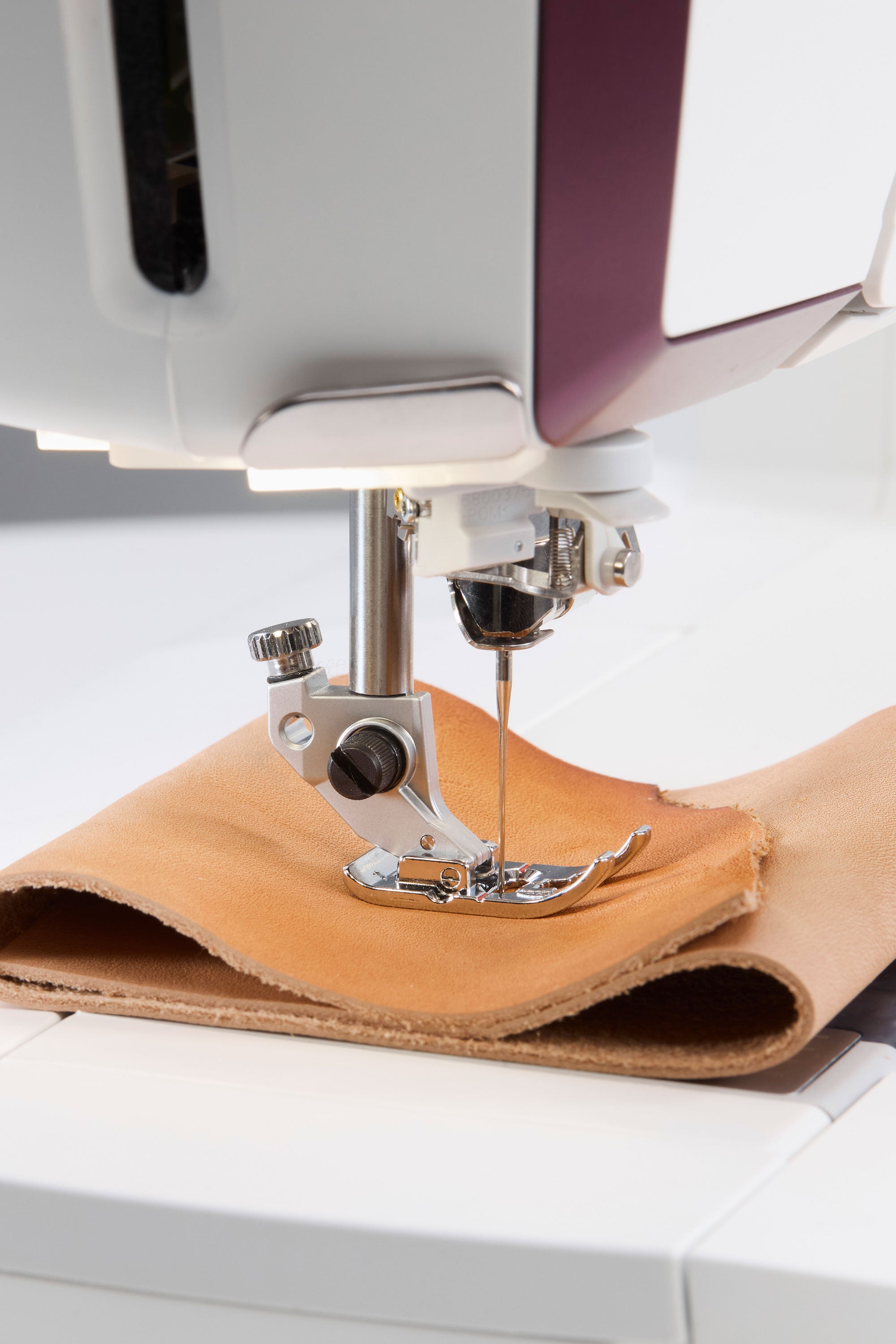

The sewing area offers 470 stitches up to 7 mm wide, 5 stitch fonts, 29 needle positions, and a sewing speed of up to 1,000 stitches per minute. The sensor buttonhole foot sews perfect buttonholes in one step. Automatic, self-regulating thread tension and the EXCLUSIVE SENSOR SYSTEM™ ensure consistently even results – regardless of the material or fabric thickness.
In the embroidery area, the machine offers 340 integrated embroidery designs, 8 embroidery fonts, and an embroidery speed of up to 850 stitches per minute (Husqvarna Viking Designer Topaz 65). Design positioning allows for precise placement of motifs – even when re-hooping the fabric.

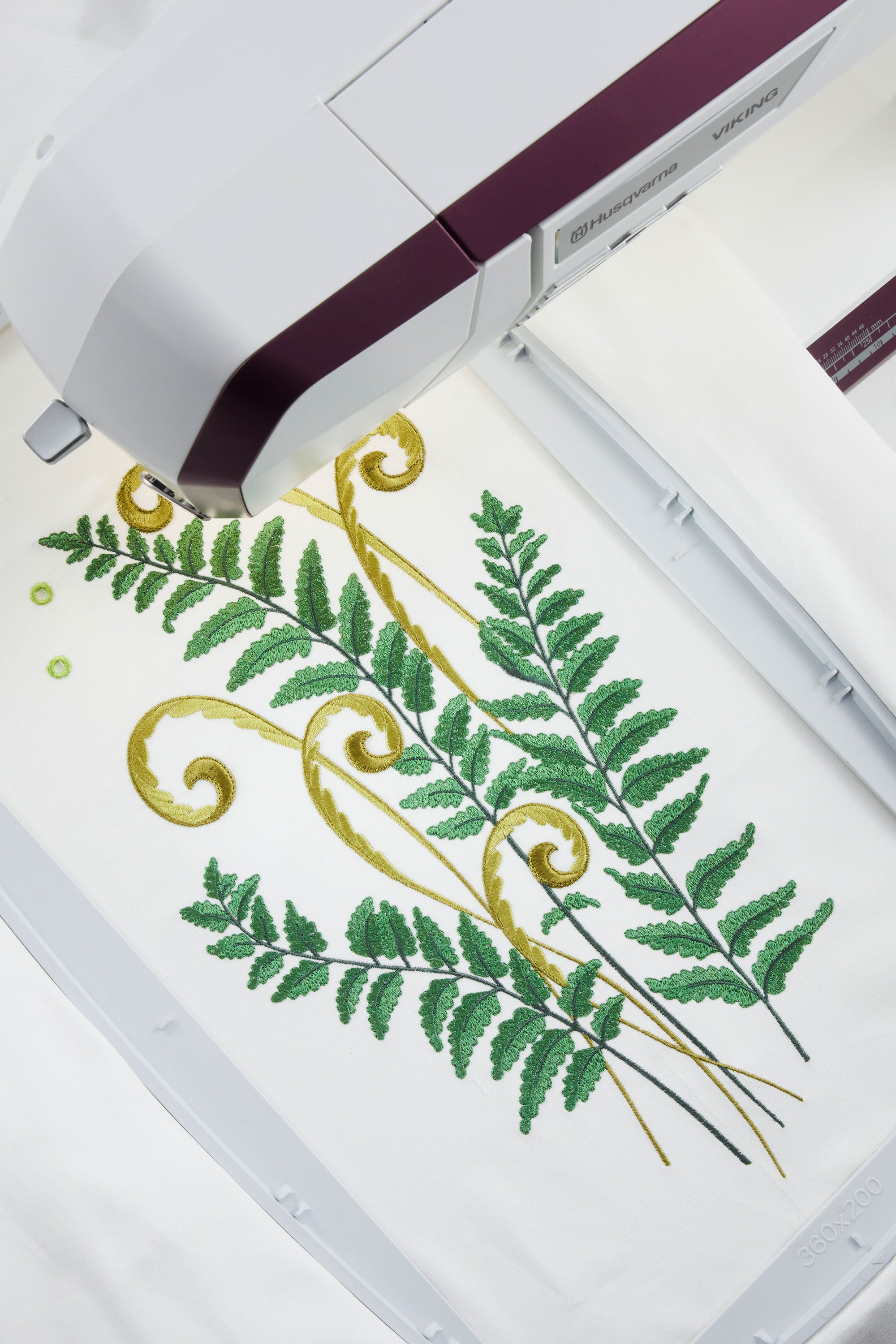

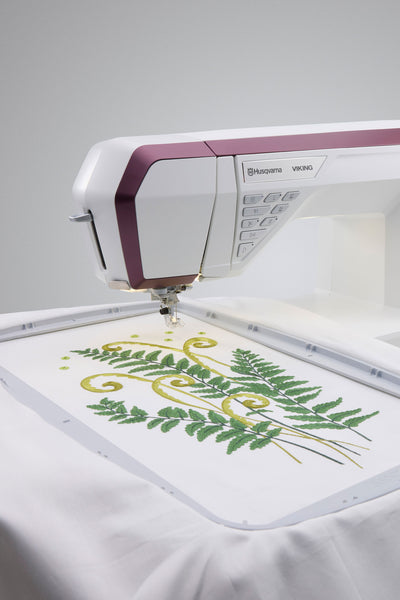

The large embroidery area of up to 360 x 200 mm (Royal Hoop) allows for generous projects. Two embroidery hoops are already included.
The JoyOS ADVISOR™ function automatically sets the optimal settings for fabric and technology and offers integrated learning programs, fleece and needle guides, as well as a complete user manual directly on the screen.
With CREATIVATE™ Connectivity, the machine is Wi-Fi enabled and can be connected to the digital platform. Designs, software updates, and inspiration are thus available at any time.
Characteristics
The DESIGNER Topaz™ 65 features an EXCLUSIVE SENSOR SYSTEM™ that automatically detects fabric thickness and continuously adjusts the presser foot pressure. The sensor-controlled presser foot lift offers multiple positions, including an extra-high position. Automatic thread tension ensures optimal stitch quality on all fabric types.

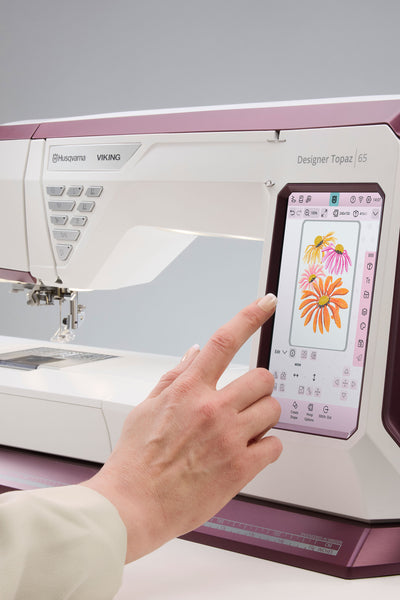

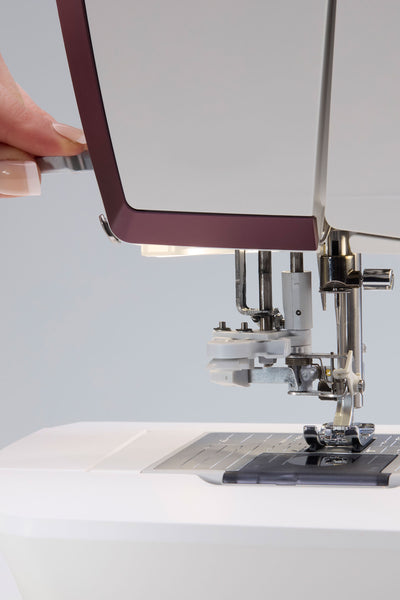

A large 7" color touchscreen enables intuitive operation. The semi-automatic needle threader simplifies thread changes. The automatic thread cutter separates the upper and lower threads at the touch of a button.
Extensive editing functions are available in embroidery mode: rotation, mirroring, scaling, color change, design shaping, basting options and automatic cutting of jump stitches.
The generous sewing area of 250 mm to the right of the needle allows for comfortable work on quilts and home textiles.
Application
The DESIGNER Topaz™ 65 is suitable for fashion, quilting, home decoration, personalized gifts, and professional embroidery projects.
The combination of automatic sensor technologies, a large embroidery area and integrated advice makes it ideal for ambitious hobby sewers, quilters and creative self-employed people who want to combine precision and comfort.
Manufacturer information
Manufacturer / EU responsible person: VSM Deutschland GmbH
Address: An der RaumFabrik 34, 76227 Karlsruhe Contact: Email: info@vsmdeutschland.com
Dimensions of the machine when ready for use, without packaging. For combination machines, dimensions may be stated without and with the embroidery unit.
Without embroidery module: W 55 × D 26 × H 32 cm
Machine weight
10 kg
Embroidery unit weight
Weight of the separate embroidery unit without the machine or transport packaging.
4 kg
Separate bobbin-winding motor
Allows a new bobbin to be wound while the machine is sewing or embroidering.
Yes
Updatable
According to the manufacturer, the machine’s firmware or software can be updated.
Yes
Sewing
Total sewing stitches
Total number of built-in sewing stitches. Buttonholes and alphabets may be included depending on how the manufacturer counts them.
474
Utility stitches
Sewing stitches for basic tasks such as straight stitch, zigzag, overcasting or stretch seams.
40
Decorative stitches
Decorative sewing stitches for embellishing fabrics. Embroidery designs are not included.
434
Built-in sewing alphabets
Alphabets sewn using regular sewing stitches. They are not the same as embroidery alphabets.
5
Buttonhole types
Number of different buttonhole types that can be sewn using the sewing function.
15
Button sewing program
Special sewing program for attaching buttons by machine.
Yes
Maximum stitch width
Greatest possible width of a zigzag or decorative stitch.
7 mm
Maximum stitch length
Greatest adjustable length of a straight stitch.
6 mm
Presser foot pressure adjustment
Controls how firmly the presser foot presses on the fabric. Adjustment helps with very fine, thick or stretchy fabrics.
Automatically electronic (sensor system)
Needle stop up/down
Determines whether the needle stops in the raised position or in the fabric, for example when pivoting the project.
button
Lateral needle positions
Number or range of selectable lateral needle positions for precise seam allowances.
29 needle positions
Twin-needle function
Allows parallel seams to be sewn with a twin needle, provided a suitable needle is fitted.
With security function
Automatic securing stitches
Automatically secures the beginning or end of a seam with locking or reverse stitches.
Automatic
Reverse sewing
Continuous and manual
Free arm for sewing
Makes it easier to sew closed or narrow items such as sleeves, trouser legs and cuffs.
Yes
Mirror stitches
Mirrors suitable sewing stitches horizontally or vertically, where the respective direction is supported.
Horizontally and vertically
Pattern start/end
Moves directly to the beginning or end within a stitch sequence.
Pattern start and end
Save personal settings
Saves preferred machine settings for later reuse.
Yes
Embroidery
Maximum included embroidery area
Largest embroidery area that can be used immediately with the hoops included in the package.
360×200 mm
Included embroidery hoops
Usable embroidery areas of the hoops included with the machine. The dimensions given are not the outer dimensions of the hoop.
360 × 200 mm and 120 × 120 mm
Number of included embroidery hoops
2
Built-in embroidery designs
Number of embroidery designs already stored in the machine.
341
Built-in embroidery alphabets
Alphabets produced as embroidery. They are not the same as sewn alphabet stitches.
7
Automatic hoop recognition
The machine automatically detects the fitted embroidery hoop and takes its usable area into account.
Yes
On-screen design editing
Embroidery designs can be edited directly on the machine, for example in size, rotation or position.
Yes
Drag-and-drop embroidery positioning
The embroidery design can be dragged directly to the desired position on the touchscreen using a finger.
Yes
Combine embroidery designs
Several embroidery designs can be combined into a single embroidery job.
Yes
Embroidery file formats
File formats that the machine can read directly and use for embroidery.
.VP3
Embroidery design transfer
Methods used to transfer embroidery files to the machine, for example a USB drive or Wi-Fi.
USB stick, Wi-Fi (CREATIVATE)
Interface
Physical and wireless connections provided by the machine, for example USB or Wi-Fi.
USB port, Wi-Fi
Included embroidery software
Software or licence that is actually included with the purchase of the machine.
CREATIVATE Basic (free, account required)
Embroider without a computer
The machine can embroider built-in or imported designs without a permanently connected computer.
